Main source file for the payoutd daemon. More...

#include <ctype.h>
#include <errno.h>
#include <fcntl.h>
#include <getopt.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <signal.h>
#include <sys/types.h>
#include <sys/stat.h>
#include "ssp_commands.h"
#include <jansson.h>
#include <hiredis/hiredis.h>
#include <hiredis/async.h>
#include <hiredis/adapters/libevent.h>
#include <syslog.h>
#include <uuid/uuid.h>
#include "StringBuffer.h"
#include "StringBuffer.c"

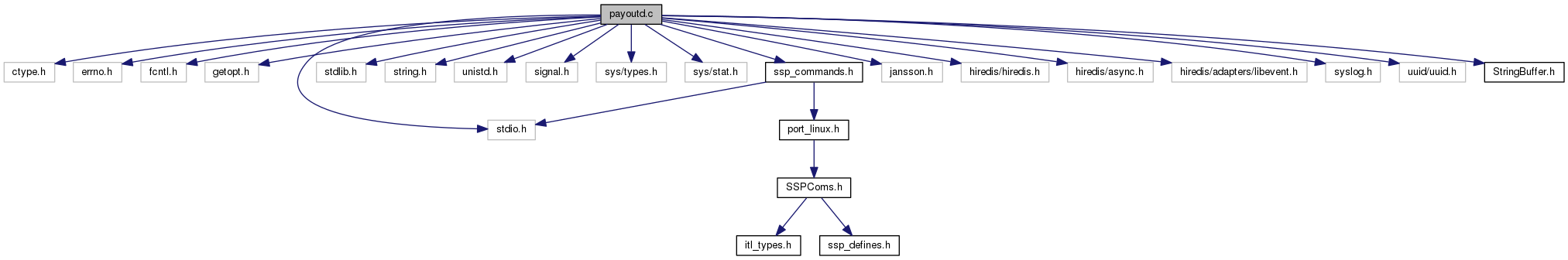

Include dependency graph for payoutd.c:

Data Structures
struct	m_device
	Structure which describes an actual physical ITL device. More...

struct	m_metacash
	Structure which contains the generic setup data and the device structures for our two ITL devices. More...

struct	m_command
	Structure which describes an actual command which we received in one of our request topics. More...

Macros
#define	SSP_CMD_GET_FIRMWARE_VERSION 0x20
	Magic Constant for the "GET FIRMWARE VERSION" command ID as specified in SSP.

#define	SSP_CMD_GET_DATASET_VERSION 0x21
	Magic Constant for the "GET DATASET VERSION" command ID as specified in SSP.

#define	SSP_CMD_GET_ALL_LEVELS 0x22
	Magic Constant for the "GET ALL LEVELS" command ID as specified in SSP.

#define	SSP_CMD_SET_DENOMINATION_LEVEL 0x34
	Magic Constant for the "SET DENOMINATION LEVEL" command ID as specified in SSP.

#define	SSP_CMD_LAST_REJECT_NOTE 0x17
	Magic Constant for the "LAST REJECT NOTE" command ID as specified in SSP.

#define	SSP_CMD_CONFIGURE_BEZEL 0x54
	Magic Constant for the "CONFIGURE BEZEL" command ID as specified in SSP.

#define	SSP_CMD_SMART_EMPTY 0x52
	Magic Constant for the "SMART EMPTY" command ID as specified in SSP.

#define	SSP_CMD_SET_REFILL_MODE 0x30
	Magic Constant for the "SET REFILL MODE " command ID as specified in SSP.

#define	SSP_CMD_DISPLAY_OFF 0x4
	Magic Constant for the "DISPLAY OFF" command ID as specified in SSP.

#define	SSP_CMD_DISPLAY_ON 0x3
	Magic Constant for the "DISPLAY ON" command ID as specified in SSP.

Functions
int	mcSspOpenSerialDevice (struct m_metacash *metacash)
	Opens the serial device.

void	mcSspCloseSerialDevice (struct m_metacash *metacash)
	Closes the serial device.

void	mcSspSetupCommand (SSP_COMMAND *sspC, int deviceId)
	Initializes the SSP_COMMAND structure.

void	mcSspInitializeDevice (SSP_COMMAND sspC, unsigned long long key, struct m_device device)
	Initializes an ITL hardware device via SSP.

void	mcSspPollDevice (struct m_device device, struct m_metacash metacash)
	Issues a poll command to the hardware and dispatches the response to the event handler function of the device.

SSP_RESPONSE_ENUM	mc_ssp_empty (SSP_COMMAND *sspC)
	Implements the "EMPTY" command from the SSP Protocol.

SSP_RESPONSE_ENUM	mc_ssp_smart_empty (SSP_COMMAND *sspC)
	Implements the "SMART EMPTY" command from the SSP Protocol.

SSP_RESPONSE_ENUM	mc_ssp_configure_bezel (SSP_COMMAND *sspC, unsigned char r, unsigned char g, unsigned char b, unsigned char volatileOption, unsigned char bezelTypeOption)
	Implements the "CONFIGURE BEZEL" command from the SSP Protocol.

SSP_RESPONSE_ENUM	mc_ssp_display_on (SSP_COMMAND *sspC)
	Implements the "DISPLAY ON" command from the SSP Protocol.

SSP_RESPONSE_ENUM	mc_ssp_display_off (SSP_COMMAND *sspC)
	Implements the "DISPLAY OFF" command from the SSP Protocol.

SSP_RESPONSE_ENUM	mc_ssp_last_reject_note (SSP_COMMAND sspC, unsigned char reason)
	Implements the "LAST REJECT NOTE" command from the SSP Protocol.

SSP_RESPONSE_ENUM	mc_ssp_set_refill_mode (SSP_COMMAND *sspC)
	Implements the "SET REFILL MODE" command from the SSP Protocol.

SSP_RESPONSE_ENUM	mc_ssp_get_all_levels (SSP_COMMAND sspC, char *json)
	Implements the "GET ALL LEVELS" command from the SSP Protocol.

SSP_RESPONSE_ENUM	mc_ssp_set_denomination_level (SSP_COMMAND sspC, int amount, int level, const char cc)
	Implements the "SET DENOMINATION LEVEL" command from the SSP Protocol.

SSP_RESPONSE_ENUM	mc_ssp_float (SSP_COMMAND sspC, const int value, const char cc, const char option)
	Implements the "FLOAT" command from the SSP Protocol.

SSP_RESPONSE_ENUM	mc_ssp_channel_security_data (SSP_COMMAND *sspC)
	Implements the "CHANNEL SECURITY DATA" command from the SSP Protocol.

SSP_RESPONSE_ENUM	mc_ssp_get_firmware_version (SSP_COMMAND sspC, char firmwareVersion)
	Implements the "GET FIRMWARE VERSION" command from the SSP Protocol.

SSP_RESPONSE_ENUM	mc_ssp_get_dataset_version (SSP_COMMAND sspC, char datasetVersion)
	Implements the "GET DATASET VERSION" command from the SSP Protocol.

int	parseCmdLine (int argc, char argv[], struct m_metacash metacash)
	Parse the command line arguments.

void	setup (struct m_metacash *metacash)
	Initializes and configures redis, libevent and the hardware.

void	hopperEventHandler (struct m_device device, struct m_metacash metacash, SSP_POLL_DATA6 *poll)
	Callback function used for inspecting and publishing events reported by the Hopper hardware. More...

void	validatorEventHandler (struct m_device device, struct m_metacash metacash, SSP_POLL_DATA6 *poll)
	Callback function used for inspecting and publishing events reported by the Validator hardware. More...

void	signalHandler (int signal)
	Signal handler.

void	hardwareWaitTime ()
	Waits for 300ms each time called. More...

redisAsyncContext *	connectRedis (struct m_metacash *metacash)
	Connect to redis and return a new redisAsyncContext.

void	cbOnPollEvent (int fd, short event, void *privdata)
	Callback function for libEvent timer triggered "Poll" event. More...

void	cbOnCheckQuitEvent (int fd, short event, void *privdata)
	Callback function for libEvent timer triggered "CheckQuit" event.

void	cbOnMetacashMessage (redisAsyncContext c, void r, void *privdata)
	Callback function triggered by an incoming message in the "metacash" topic.

int	isCommand (struct m_command cmd, const char command)
	Test if cmd.command equals command.

int	publishPayoutEvent (char *format,...)
	Helper function to publish a message to the "payout-event" topic.

int	publishHopperEvent (char *format,...)
	Helper function to publish a message to the "hopper-event" topic.

int	publishValidatorEvent (char *format,...)
	Helper function to publish a message to the "validator-event" topic.

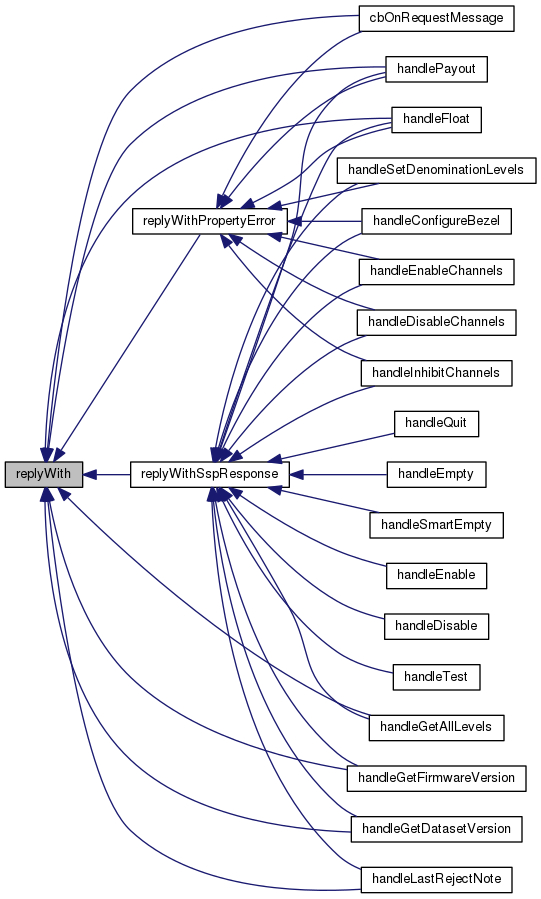

int	replyWith (char topic, char format,...)
	Helper function to publish a message to the given topic. More...

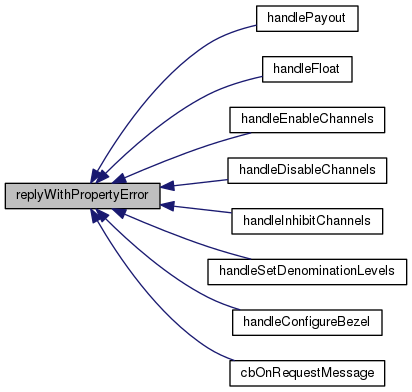

int	replyWithPropertyError (struct m_command cmd, char name)
	Helper function to publish a reply to a message which was missing a mandatory property (or the property was of the wrong type). More...

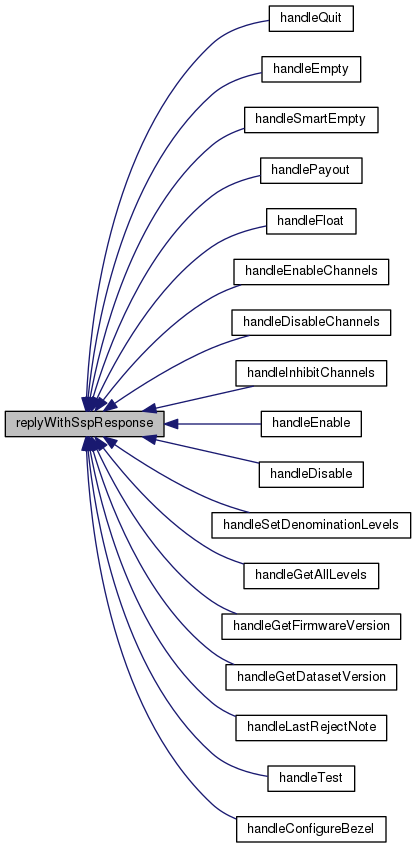

int	replyWithSspResponse (struct m_command *cmd, SSP_RESPONSE_ENUM response)
	Helper function to publish a reply to a message which contains a human readable version of the SSP response. More...

void	handleQuit (struct m_command *cmd)
	Handles the JSON "quit" command.

void	handleEmpty (struct m_command *cmd)
	Handles the JSON "empty" command.

void	handleSmartEmpty (struct m_command *cmd)
	Handles the JSON "smart-empty" command.

void	handlePayout (struct m_command *cmd)
	Handles the JSON "do-payout" and "test-payout" commands.

void	handleFloat (struct m_command *cmd)
	Handles the JSON "do-float" and "test-float" commands.

void	dbgDisplayInhibits (unsigned char inhibits)
	Print inhibits debug output.

void	handleEnableChannels (struct m_command *cmd)
	Handles the JSON "enable-channels" command.

void	handleDisableChannels (struct m_command *cmd)
	Handles the JSON "disable-channels" command.

void	handleInhibitChannels (struct m_command *cmd)
	Handles the JSON "inhibit-channels" command.

void	handleEnable (struct m_command *cmd)
	Handles the JSON "enable" command.

void	handleDisable (struct m_command *cmd)
	Handles the JSON "disable" command.

void	handleSetDenominationLevels (struct m_command *cmd)
	Handles the JSON "set-denomination-levels" command.

void	handleGetAllLevels (struct m_command *cmd)
	Handles the JSON "get-all-levels" command.

void	handleGetFirmwareVersion (struct m_command *cmd)
	Handles the JSON "get-firmware-version" command.

void	handleGetDatasetVersion (struct m_command *cmd)
	Handles the JSON "get-dataset-version" command.

void	handleLastRejectNote (struct m_command *cmd)
	Handles the JSON "last-reject-note" command.

void	handleChannelSecurityData (struct m_command *cmd)
	Handles the JSON "channel-security" command.

void	handleTest (struct m_command *cmd)
	Handles the JSON "test" command.

void	handleConfigureBezel (struct m_command *cmd)
	Handles the JSON "configure-bezel" command.

void	cbOnRequestMessage (redisAsyncContext c, void r, void *privdata)
	Callback function triggered by an incoming message in either the "hopper-request" or "validator-request" topic. More...

void	cbOnConnectPublishContext (const redisAsyncContext *c, int status)
	Callback function triggered by the redis client on connecting with the "publish" context.

void	cbOnDisconnectPublishContext (const redisAsyncContext *c, int status)
	Callback function triggered by the redis client on disconnecting with the "publish" context.

void	cbOnConnectSubscribeContext (const redisAsyncContext *c, int status)
	Callback function triggered by the redis client on connecting with the "subscribe" context.

void	cbOnDisconnectSubscribeContext (const redisAsyncContext *c, int status)
	Callback function triggered by the redis client on disconnecting with the "subscribe" context.

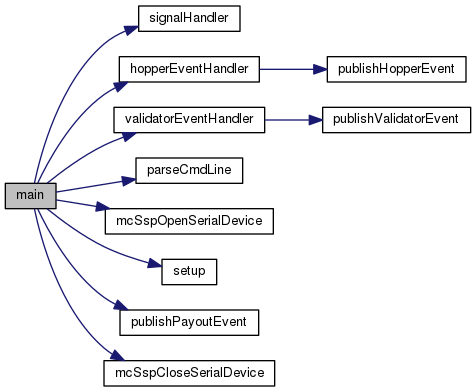

int	main (int argc, char *argv[])
	Supports arguments -h (redis hostname), -p (redis port), -d (serial device name) and -?. More...

Variables
redisAsyncContext *	redisPublishCtx = NULL
	redis context used for publishing messages

redisAsyncContext *	redisSubscribeCtx = NULL
	redis context used for subscribing to topics

const char	SSP_OPTION_ROUTE_CASHBOX = 0x01
	Magic Constant for the "route to cashbox" option as specified in SSP.

const char	SSP_OPTION_ROUTE_STORAGE = 0x00
	Magic Constant for the "route to storage" option as specified in SSP.

const unsigned char	SSP_OPTION_VOLATILE = 0x00
	Magic Constant for the "volatile" option in configure bezel as specified in SSP.

const unsigned char	SSP_OPTION_NON_VOLATILE = 0x01
	Magic Constant for the "non volatile" option in configure bezel as specified in SSP.

const unsigned char	SSP_OPTION_SOLID = 0x00
	Magic Constant for the "solid" option in configure bezel as specified in SSP.

const unsigned char	SSP_OPTION_FLASHING = 0x01
	Magic Constant for the "flashing" option in configure bezel as specified in SSP.

const unsigned char	SSP_OPTION_DISABLED = 0x02
	Magic Constant for the "disabled" option in configure bezel as specified in SSP.

static const unsigned long long	DEFAULT_KEY = 0x123456701234567LL

static const char *	CURRENCY = "EUR"

int	receivedSignal = 0
	Set by the signalHandler function and checked in cbCheckQuit.

Detailed Description

Main source file for the payoutd daemon.

In a nutshell:

we are single threaded
libevent is used to trigger 2 periodic events ("poll event" and "check quit") which poll the hardware and check if we should quit
main() function supports arguments -h (redis hostname), -p (redis port), -d (serial device name) and -?
libevent calls cbOnPollEvent() for the "poll" event
libevent calls cbOnCheckQuitEvent() for the "check quit" event
redis is used in conjunction with libevent
if a message is detected in 'validator-request' or 'hopper-request' the cbOnRequestMessage() is called
the cbOnRequestMessage() checks if the command is known and if its known dispatches the call to a handle<Cmd> function
a command handler interprets the provided JSON message, issues commands to the money hardware and publishes a JSON response
the naming convention used most of the time is like: the JSON command is 'configure-bezel' so the handler function is called handleConfigureBezel()
handleConfigureBezel() itself calls mc_ssp_configure_bezel() which sends the SSP command to the hardware
each device has its own poll event handling function (responsible for publishing the events to the devices event topic)
those poll handler functions are hopperEventHandler() and validatorEventHandler()
on startup/exiting of the daemon started/exiting messages are published to the 'payout-event' topic

Function Documentation

void cbOnPollEvent	(	int	fd,
		short	event,
		void *	privdata
	)

Callback function for libEvent timer triggered "Poll" event.

Details only to get graph.

Here is the call graph for this function:

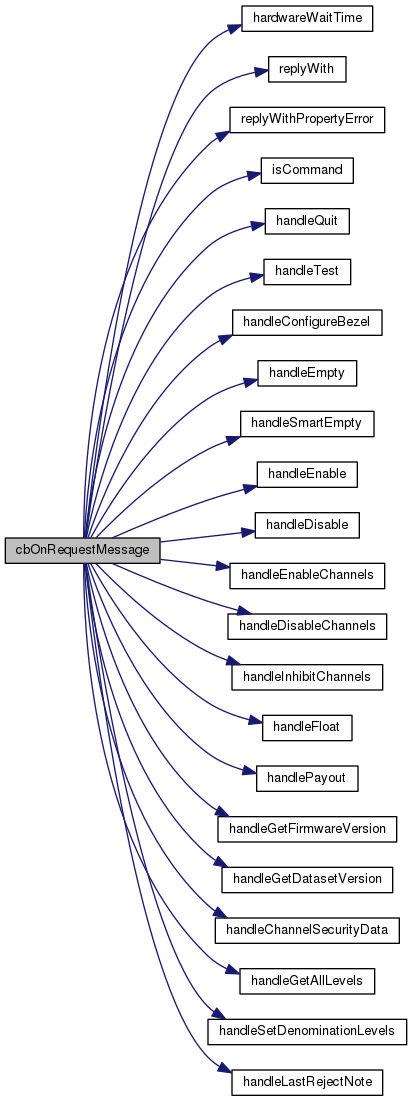

void cbOnRequestMessage	(	redisAsyncContext *	c,
		void *	r,
		void *	privdata
	)

Callback function triggered by an incoming message in either the "hopper-request" or "validator-request" topic.

Details only to get graph.

Here is the call graph for this function:

void hardwareWaitTime ( )

Waits for 300ms each time called.

Details only to get graph.

Here is the caller graph for this function:

void hopperEventHandler	(	struct m_device *	device,
		struct m_metacash *	metacash,
		SSP_POLL_DATA6 *	poll
	)

Callback function used for inspecting and publishing events reported by the Hopper hardware.

Details only to get graph.

Here is the call graph for this function:

int main	(	int	argc,
		char *	argv[]
	)

Supports arguments -h (redis hostname), -p (redis port), -d (serial device name) and -?.

Warning: both "calls" to hopperEventHandler() and validatorEventHandler() in the callgraph are false positives!

Here is the call graph for this function:

int replyWith	(	char *	topic,
		char *	format,
			...
	)

Helper function to publish a message to the given topic.

Details only to get graph.

Here is the caller graph for this function:

int replyWithPropertyError	(	struct m_command *	cmd,
		char *	name
	)

Helper function to publish a reply to a message which was missing a mandatory property (or the property was of the wrong type).

Details only to get graph.

Here is the caller graph for this function:

int replyWithSspResponse	(	struct m_command *	cmd,
		SSP_RESPONSE_ENUM	response
	)

Helper function to publish a reply to a message which contains a human readable version of the SSP response.

Details only to get graph.

Here is the caller graph for this function:

void validatorEventHandler	(	struct m_device *	device,
		struct m_metacash *	metacash,
		SSP_POLL_DATA6 *	poll
	)

Callback function used for inspecting and publishing events reported by the Validator hardware.

Details only to get graph.

Here is the call graph for this function:

Data Structures

Macros

Functions

Variables

Detailed Description

Function Documentation
